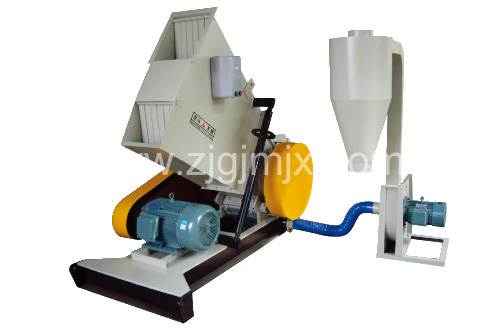

 SPW Series Horizontal Plastic Breaking Machine is mainly used for breaking relatively long PVC special shaped material, such as plastic door & window, plastic pipe, sheet, etc. There is no need to cut. Once continuous feeding can be conducted. Internal design of SWP Series Horizontal Plastic Breaking Machine is rather distinct. It is a new kind of breaking machine used for breaking plastic profiled material with large hardness and tenacity. It is improved and extended on the basis of SPW series breaking machine. Automatic feeding can be realized for these two models. Wind motor is arranged for transport of broken material, start-up device is arranged. The operation and maintenance & repair is rather simple. It is an ideal model for breaking all sorts of pipe material and profiled material.

Main Technical Parameter

Model	SWP160	SWP200	SWP400	SWP550	SWP630	SWP1200
Diameter of Rotating Blade	160	200	400	550	630	680
Rotating Blade Quantity	3	3	5	6	9把/2組	30把/6組
Rotating Speed of Rotating Blade	500	650	500	500	480	500
Fixed Blade Quantity	2	2	2	2	4把/2組	6把/3組
Aperture of Screen	Φ8	Φ8	Φ10	Φ10-Φ14	Φ10-Φ16	Φ12-Φ25
Grinding Capacity	50-100	50-120	250-300	300-500	700-850	800-1500
Power(kw)	3	4	15	30	37	55-75
Power Source	3相380V 50Hz
Aperture of Feed Inlet(mm)	200×250	240×350	375×320	420×450	820×610	1200×720
Total weight (kg)	280	300	1200	1800	3500	4800
Outline dimension(mm)	1000×550×1050	1000×590×1090	2000×980×1900	2250×1100×2400	2754×2000×2400	3200×2200×3000

Revision right reserved
